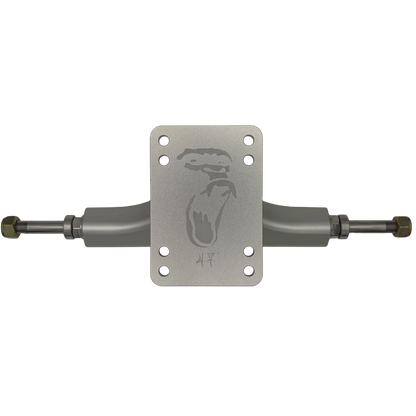

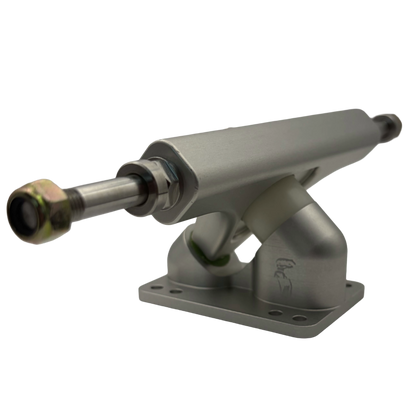

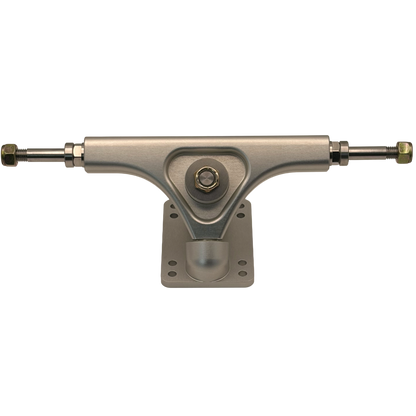

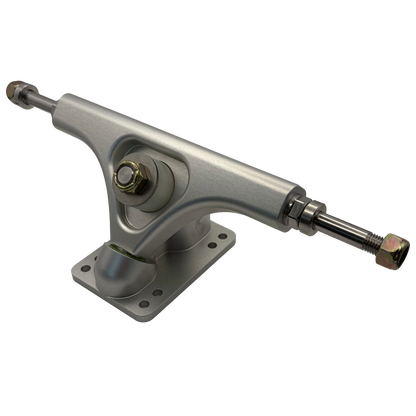

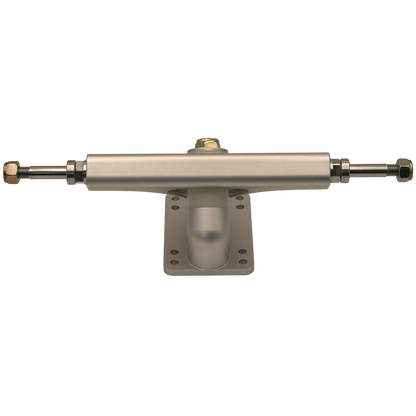

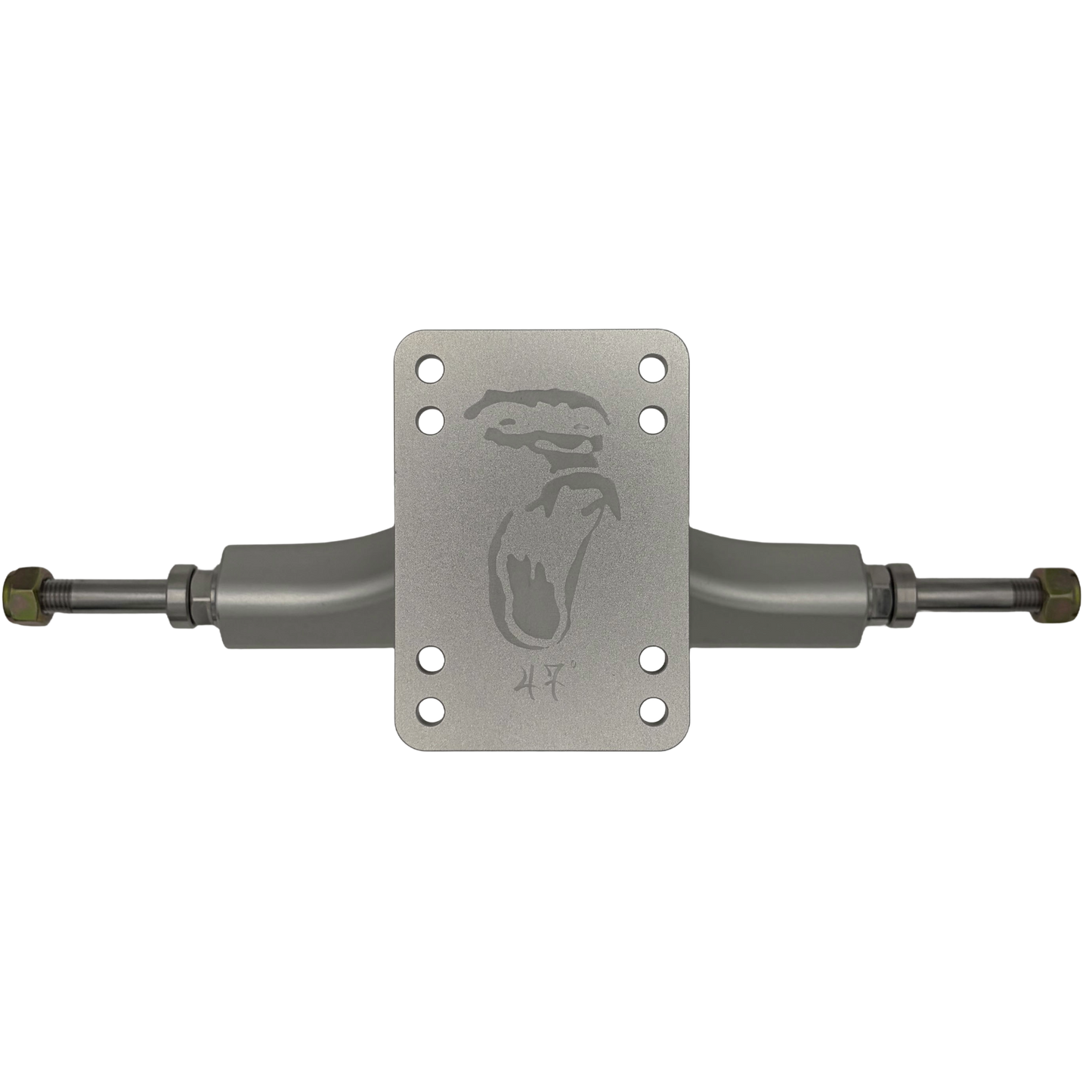

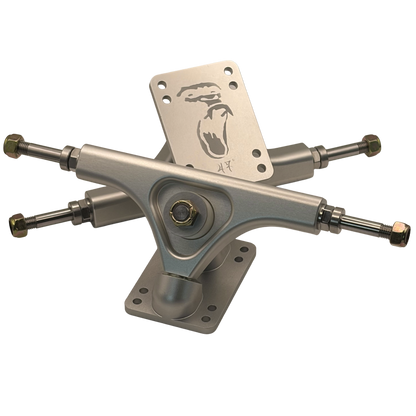

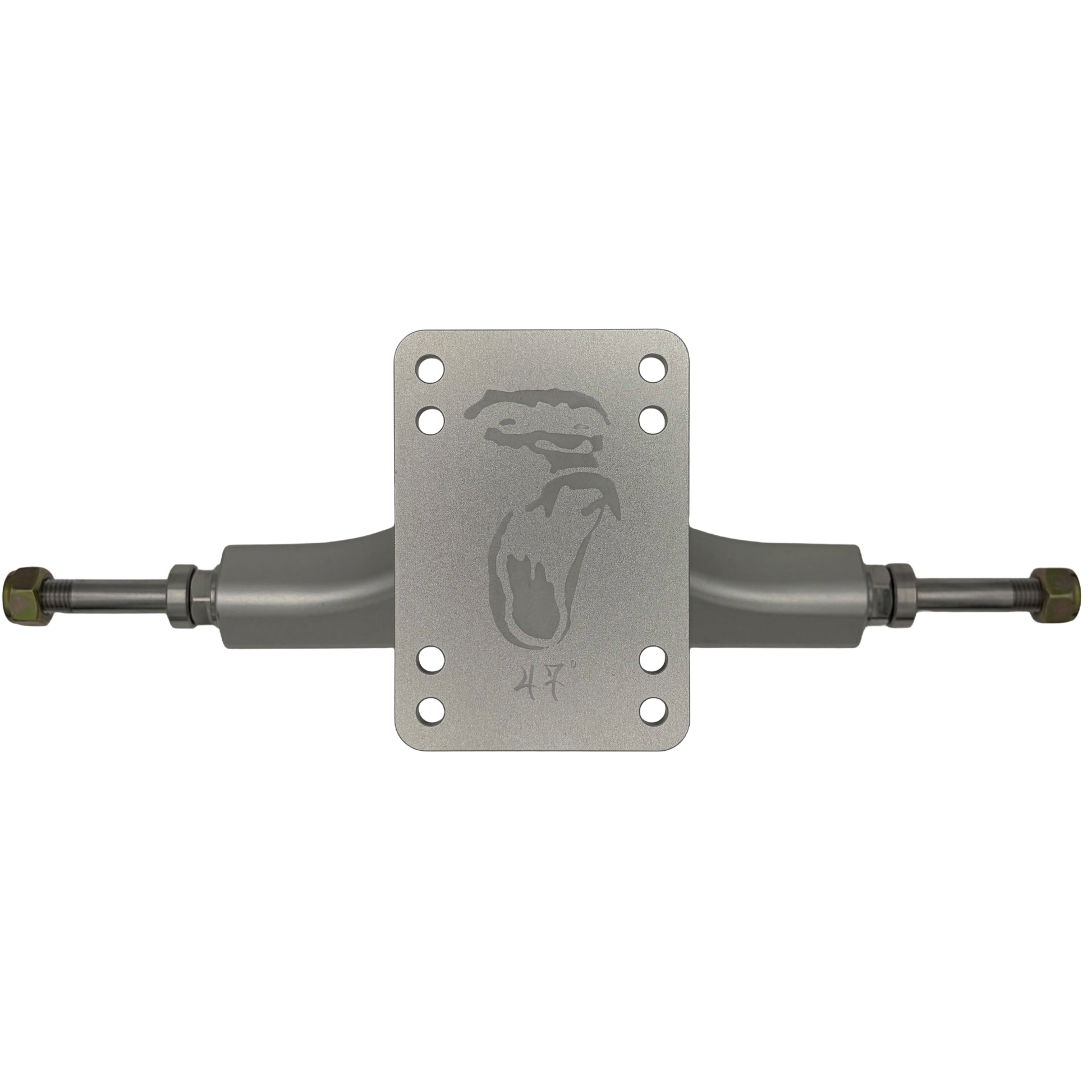

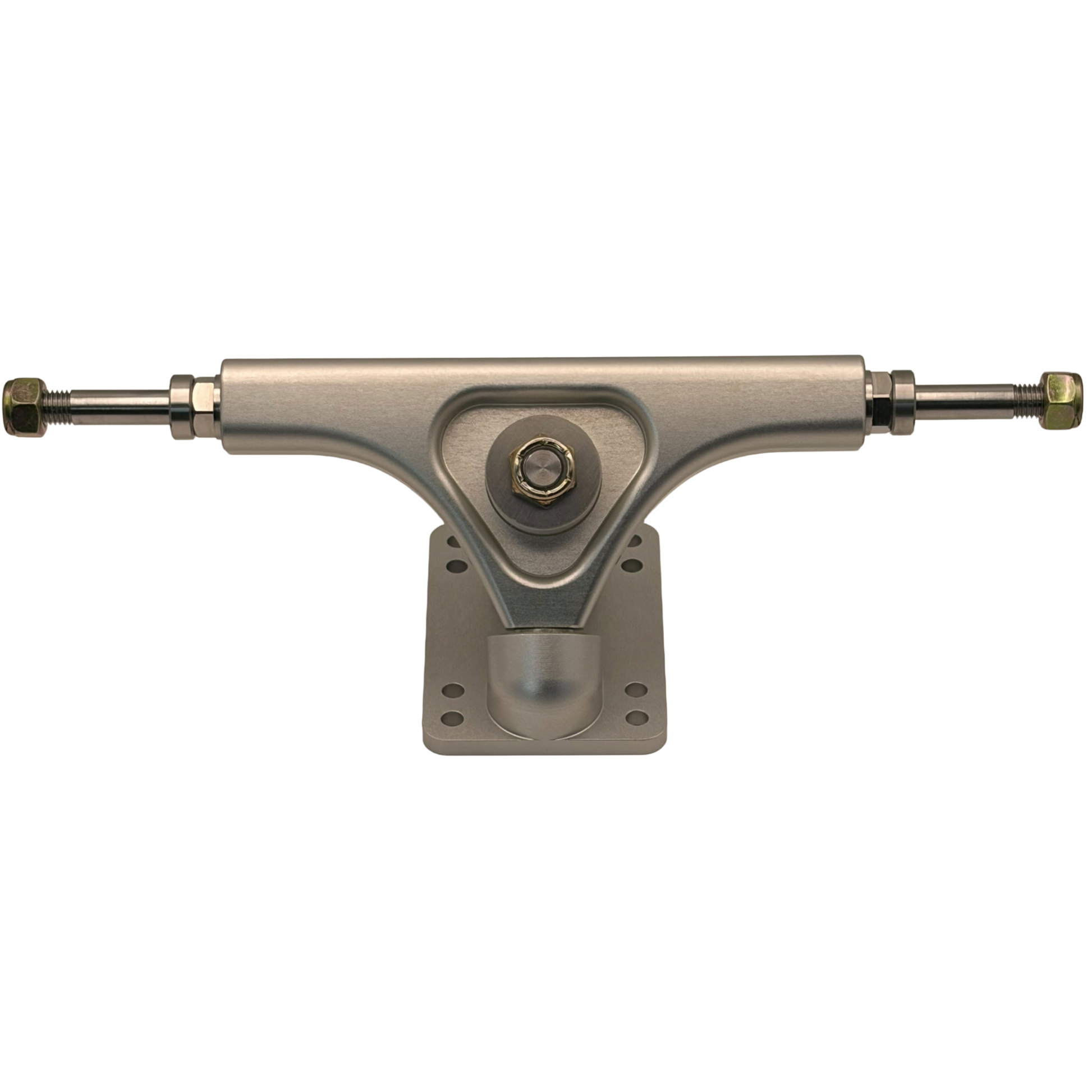

Silverback Trucks

Set of 2

Precision 7075 Aluminium Hangers and Baseplates

Hanger Widths: 155mm-165mm or 160mm-170mm

Baseplate Angles: 50° , 47° or 41°

Rake: 3.5mm

Ride Height: 57.7mm

17-4 stainless steel Axles, Kingpins, and Pivot Pins

301 Stainless Steel Flat Washers

Riptide Pivot Tubes Included

NO BUSHINGS INCLUDED. Bushing seat accepts standard .975in x .6in bushings.

Questions? Email us at silverbacktrucks@gmail.com or message @silverbacktrucks on instagram.

TEAM SETUPS

Lucas Schuldt @deckk3r

• 160mm-170mm
• Front 47° 83A/85A
• Rear Rear 47° 85A/87A

Clark Patrick @clarkpatrick

• 155mm-165mm
• Front 50° 81A/85A
• Rear 50° 87A/90A

Brett Benfield @bred_slice

• 160mm-170mm
• Front 47° 87A/85A
• Rear 47° 90A/90A

Richard Allen @richard26allen

• 155mm-165mm
• Front 47° 87A/90A
• Rear 41° 93A/93A

David Bubier

• 160mm-170mm
• Front 50° 85A/87A
• Rear 50° 85A/87A

Levon Boyd @lilmanboyd

• 160mm-170mm
• Front 47° 85A/85A
• Rear 47° 87A/87A

Jesse Greenberg @jesse.elem

• 155mm-65mm
• Front 50° 90A/92.5A
• Rear 41° 95A/100A

Kaleb McCrink @kalebkrank

• 160mm-170mm
• Front 47° 85A/87A
• Rear 47° 87A/90A

Will Duerr @williamp.duerr

• 160mm-170mm
• Front 47° 87A/90A
• Rear 47° 90A/93A
